代 號

螺紋 THREAD

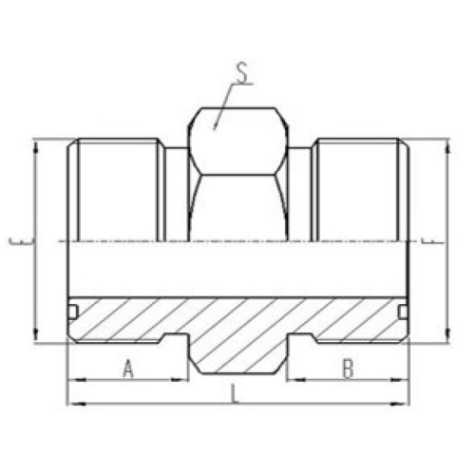

尺 寸 DIMENSIONS

PART NO.

E

F

A

B

L

S

1F-04

9/16"X18

9/16"X18

9.8

9.8

27.5

17

1F-04-06

9/16"X18

11/16"X16

9.8

11.2

29.7

19

1F-06

11/16"X16

11/16"X16

11.2

11.2

31.1

19

1F-06-08

11/16"X16

13/16"X16

11.2

12.8

33.8

22

1F-08

13/16"X16

13/16"X16

12.8

12.8

35.4

22

1F-08-10

13/16"X16

1"X14

12.8

15.5

40

27

1F-10

1"X14

1"X14

15.5

15.5

42.5

27

1F-12

1.3/16"X12

1.3/16"X12

17

17

47.1

32

1F-12-20

1.3/16"X12

1.11/16"X12

17

17.5

50.5

46

1F-16

1.7/16"X12

1.7/16"X12

17.5

17.5

49.3

38

1F-16-24

1.7/16"X12

2"X12

17.5

17.5

53

55

1F-20

1.11/16"X12

1.11/16"X12

17.5

17.5

51.3

46

1F-24

2"X12

2"X12

17.5

17.5

53

55
